  • Our products

    We are a leading manufacturer, our products are original and guaranteed straight to our buyers and project owners with local and global service 24/7...

    YATOO Ocean AS solar PV module

    Solar photovoltaic module

    > Application scenarios:

    • Residential, commercial & industrial buildings, utility-scale solar parks

    > Key features

    • Model: Half Cell PERC, Bifacial, Double-glass, All black.
    • Typical power output: 460/550/670W
    • Module fire performance: Type 1 (UL 1703)
    • Fire resistance rating: Class C (IEC 61730)
    • Certificated to withstand wind(2400Pa) and snow load(5400Pa)
    • Salt mist & ammonia corrosion, blowing sand, and hail tested
    • 12 years of material & workmanship warranty
    • 25 years of linear power output warranty

    > Lead time: 20 days

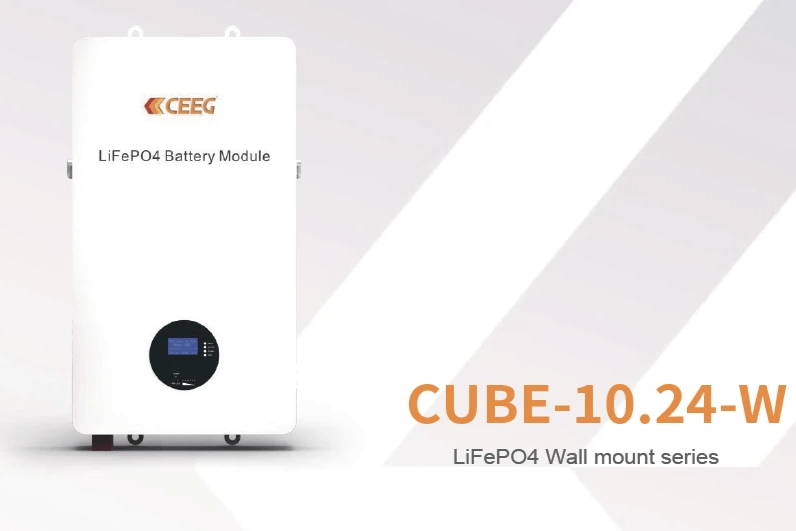

    YATOO Ocean AS battery module

    Wall mount series battery module

    > Application scenarios:

    • Home or office solar storage unit to maximize solar utilization
    • A backup power source

    > Key parameters:

    • Model: CUBE-5.12-W, CUBE-10.24-W
    • Rated capacity: 5.12/10.24 kWh
    • Material: LiFePO4

    > Lead time: 20 days

    YATOO Ocean AS off-grid solar energy storage system

    Off-grid solar energy storage system

    > Application scenario:

    • Home or office off-grid solar storage system to maximize solar utilization
    • A backup power source

    > Key parameters:

    • Model: CHIEF-3.5-OG, CHIEF-5.5-OG
    • PV input Voltage: 230V
    • Rated output power: 3.5 and 5.5 kW
    • Battery Capacity: 5.12 and 10.24 kWh
    • Battery Type: LiFePO4

    > Lead time: 30 days

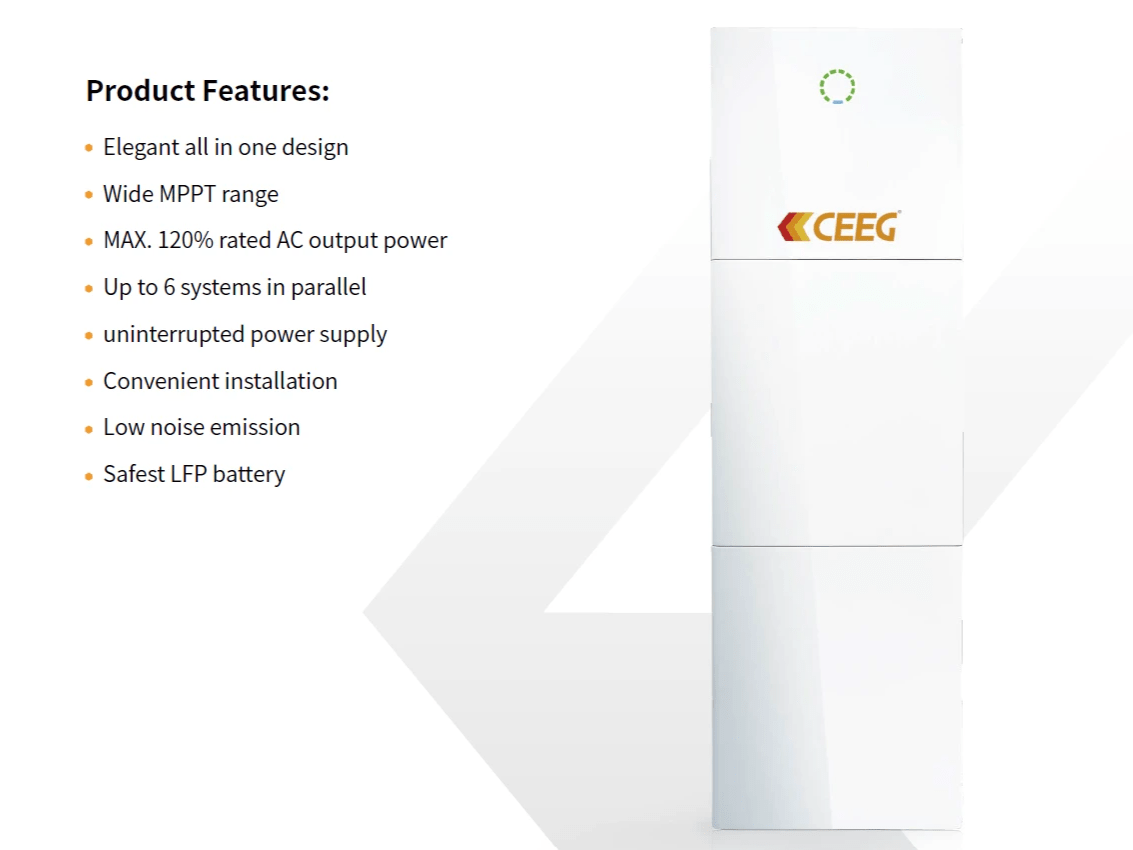

    YATOO Ocean AS single-phase solar energy storage system

    Singe-phase solar energy storage system

    > Application scenario:

    • Home or office on-grid solar storage system to maximize solar utilization
    • A backup power source
    • Peak-Valley price arbitrage

    > Key parameters:

    • Model: CHCI-3.6K, CHCI-5.0K, CHCI-6.0K
    • PV input Voltage: 600VDC
    • Rated output power: 3.6, 5.0 and 6.0 kW
    • Battery Capacity: 5.12 / 10,24 kWh
    • Battery Type: LiFePO4

    > Lead time: 30 days

    YATOO Ocean AS three-phase solar energy storage system

    Three-phase solar energy storage system

    > Application scenario:

    • Home or office on-grid solar storage system to maximize solar utilization
    • A backup power source
    • Peak-Valley price arbitrage

    > Key parameters:

    • Model: CHIEF-5.0-T-A, CHIEF-8.0-T-A, CHIEF-10.0-T-A, CHIEF-12.0-T-A
    • PV input Voltage: 1000VDC
    • Rated output power: 5, 8, 10 and 12 kW
    • Battery Capacity: 3.84 / 7.68 / 11.52 / 15.36 kWh
    • Battery Type: LiFePO4

    > Lead time: 30 days

    YATOO Ocean AS 100kWh energy storage system

    100 kWh Air-cooled energy storage system

    > Application scenarios:

    • Solar PV integration to maximize the utilization of solar energy
    • Peak-Valley price arbitrage
    • Microgrid for industrial & commercial buildings

    > Key parameters:

    • Model: CEIC-W-100kWh-50kW-DCDC, CEIC-W-100kWh-50kW
    • Rated power: 50kW
    • System capacity: 100.352kWh (MAX)
    • Battery Type: LiFePO4
    • Dimension(W/D/H): 1350x1050x2080 mm

    > Lead time: 20 days

    YATOO Ocean AS 200kWh energy storage system

    200 kWh Air-cooled energy storage system

    > Application scenarios:

    • Solar PV integration to maximize the utilization of solar energy
    • Peak-Valley price arbitrage
    • Microgrid for industrial & commercial buildings

    > Key parameters:

    • Model: CEIC-W-200kWh-100kW-DCDC, CEIC-W-200kWh-100kW
    • Rated power: 100kW
    • System capacity: 200.7kWh (MAX)
    • Battery Type: LiFePO4
    • Dimension(W/D/H): 1350x1550x2080 mm

    > Lead time: 20 days

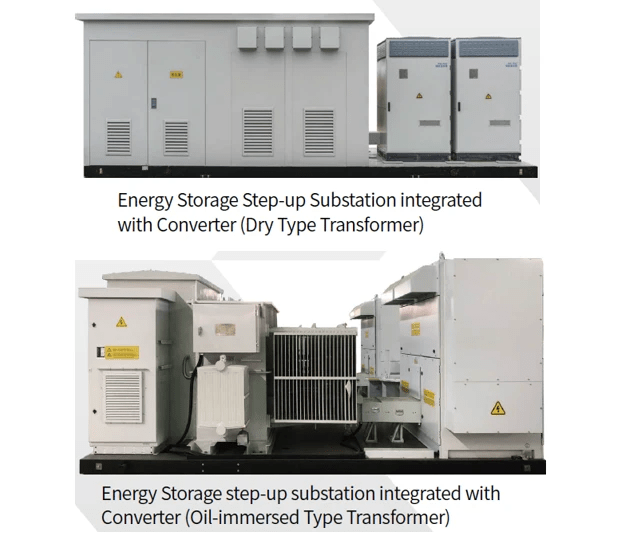

    YATOO Ocean AS, energy storage step-up substation

    Energy storage step-up substation

    > Application scenarios:

    • Microgrid combined with wind power or solar power plants.
    • The grid balancing.

    > Key features:

    • Integral commissioning from the factory as a turnkey solution
    • Anti-corrosion, thermal insulation, ventilation, and heat dissipation, flame-resistant factors rigorously considered and tested

    > Key parameters:

    • Max. capacity: 6.8MW
    • High-voltage side: 6-35kV
    • Low-voltage side: 0.315-0.69kV
    • DC side voltage: up to 1500VDC

    > Lead time: 90 days

    YATOO Ocean AS, battery compartment

    Battery compartment

    > Application scenarios:

    • Utility-scale energy storage solution for solar or wind power parks

    > Key features:

    • 8000+ system cycles
    • Energy density increased ≥ 30%
    • Liquid-cooled system

    > Key parameters:

    • Model: CEGS-W-3000kWh-1331V, CEGS-W-4000kWh-1331V, CEGS-W-5000kWh-1331V
    • Rated capacity: 2982.4/4100/5219.2 kWh
    • Rated voltage: 1331.2VDC
    • Dimension: 20/30/40feet

    > Lead time: 60 days
