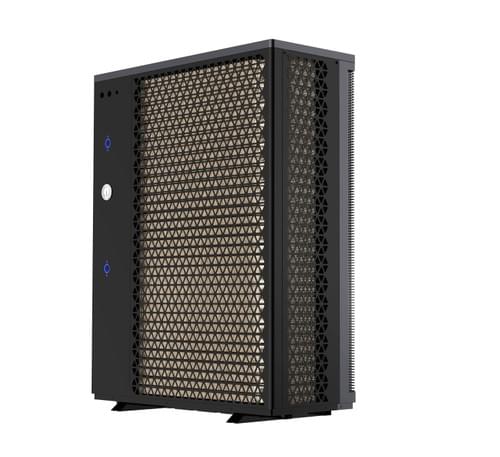

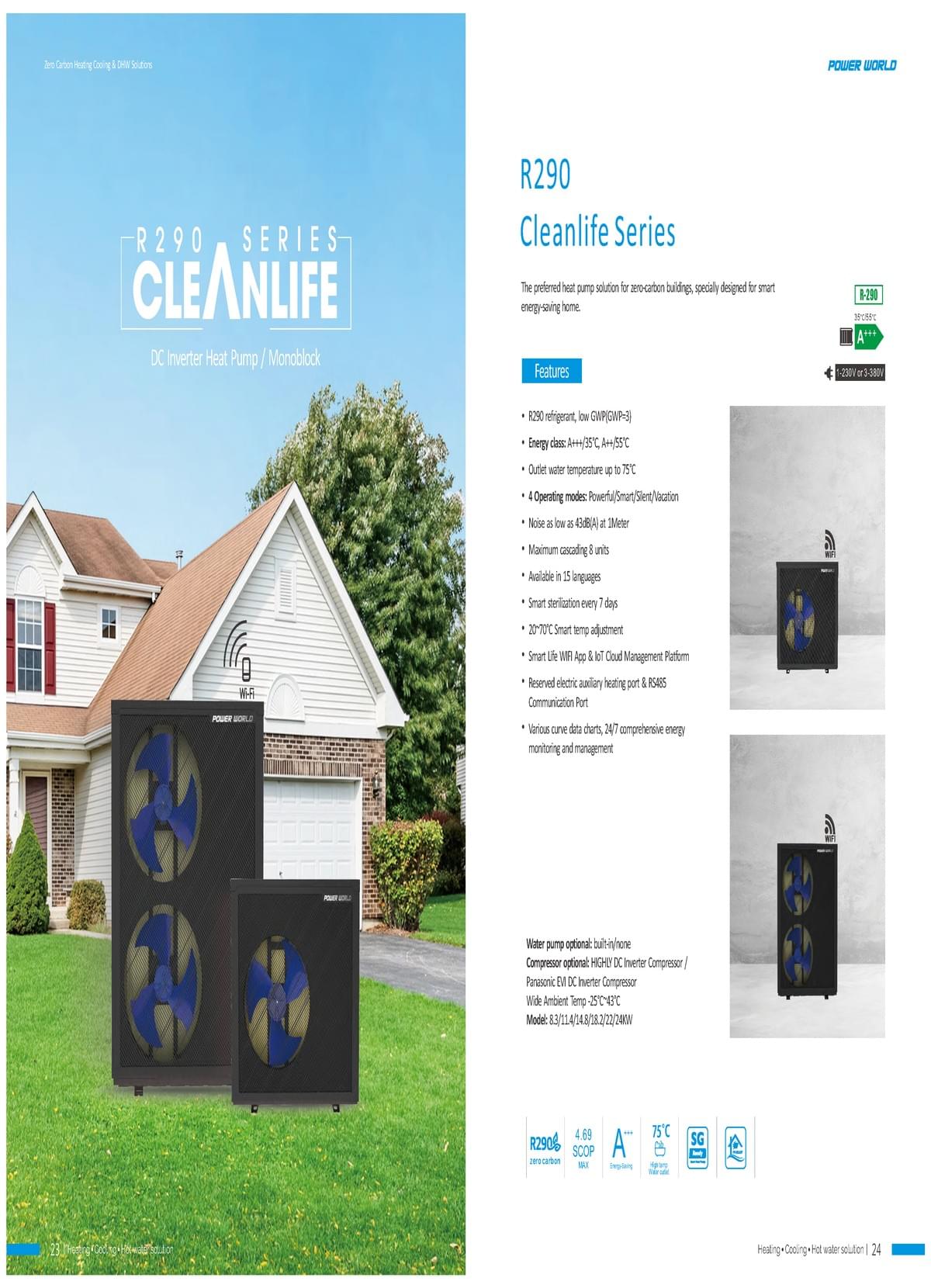

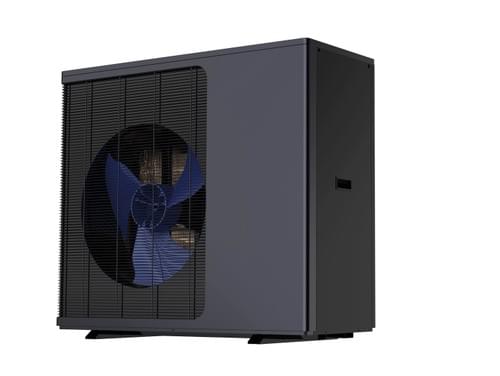

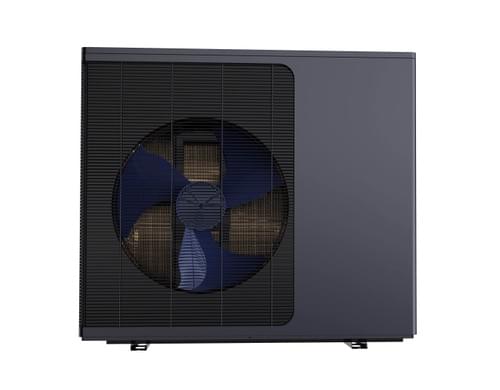

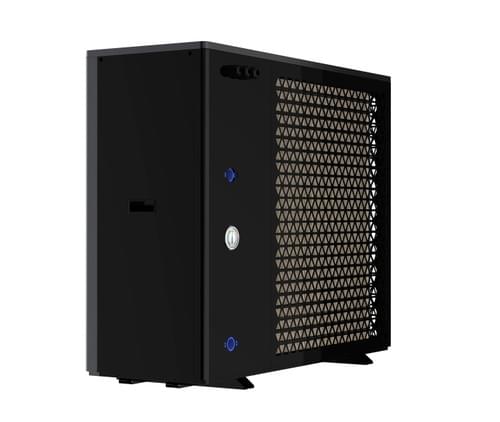

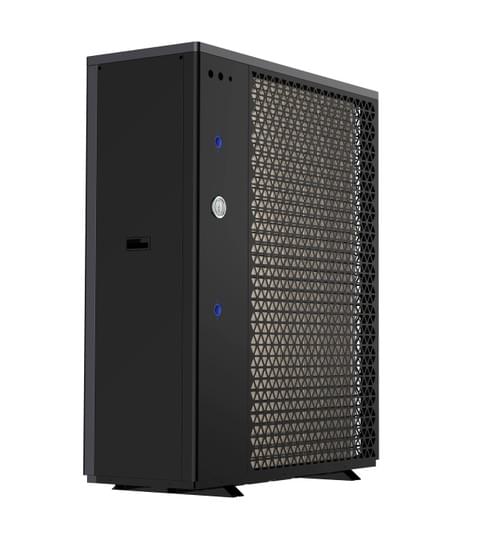

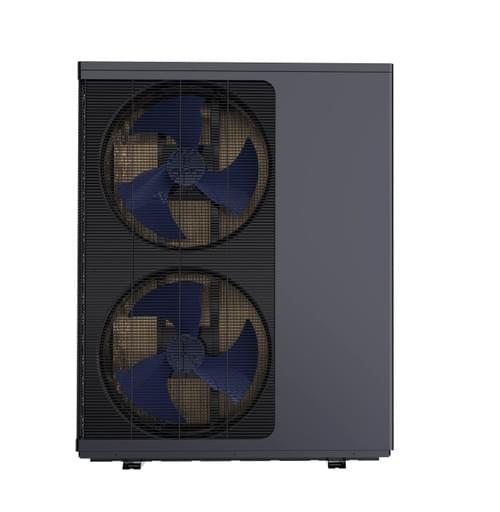

R290 Clean Life Series: DC Inverter Heat Pump for cooling heating and DHW
The preferred heat pump solution for zero-carbon buildings, specially designed for smart energy-saving home.
Features:
R290 refrigerant, low GWP(GWP=3)
Energy class: A+++/35°C, A++/55°C
Outlet water temperature up to 75°C
4 Operating modes: Powerful/Smart/Silent/Vacation
Noise as low as 43dB(A) at 1Meter
Maximum cascading 8 units
Available in 15 languages
Smart sterilization every 7 days
20~70°C Smart temp adjustment
Smart Life WIFI App & IoT Cloud Management Platform
Reserved electric auxiliary heating port & RS485
Communication Port
Various curve data charts, 24/7 comprehensive energy
monitoring and management
Water pump optional: built-in/none
Compressor optional: HIGHLY DC Inverter Compressor / Panasonic EVI DC Inverter Compressor
Wide Ambient Temp -25°C~43°C
Model: 8.3/11.4/14.8/18.2/22/24KW
Features:
R290 refrigerant, low GWP(GWP=3)
Energy class: A+++/35°C, A++/55°C
Outlet water temperature up to 75°C
4 Operating modes: Powerful/Smart/Silent/Vacation
Noise as low as 43dB(A) at 1Meter
Maximum cascading 8 units
Available in 15 languages
Smart sterilization every 7 days
20~70°C Smart temp adjustment
Smart Life WIFI App & IoT Cloud Management Platform
Reserved electric auxiliary heating port & RS485
Communication Port
Various curve data charts, 24/7 comprehensive energy
monitoring and management
Water pump optional: built-in/none
Compressor optional: HIGHLY DC Inverter Compressor / Panasonic EVI DC Inverter Compressor
Wide Ambient Temp -25°C~43°C
Model: 8.3/11.4/14.8/18.2/22/24KW
More Details
| DC Inverter Heat Pump for cooling heating and DHW (R290) | |||||||||||||
| BOM code（Standard） | CP-RW0200046 | CP-RW0300114 | CP-RW0400086 | CP-RW0500125 | CP-RW0550002 | CP-RW0600075 | CP-RW0700021-01 | CP-RW0400094 | CP-RW0500126 | CP-RW0550001 | CP-RW0600061 | CP-RW0700020-01 | |
| BOM code（Standard with auxiliary heat source neutral） | CP-RW0200046 | CP-RW0400086-50 | CP-RW0500125-26 | CP-RW0600075-06 | CP-RW0400094-11 | CP-RW0500126-45 | CP-RW0550001-02 | CP-RW0600061-58 | CP-RW0700020-10 | ||||
| Model | PW020-DKZLRS-E/S | PW030-DKZLRS-E/S | PW040-DKZLRS-E/S | PW050-DKZLRS-E/S | PW055-DKZLRS-E/S | PW060-DKZLRS-E/S | PW070-DKZLRS-E/S | PW040-DKZLRS-E | PW050-DKZLRS-E | PW055-DKZLRS-E | PW060-DKZLRS-E | PW070-DKZLRS-E | |
| Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):30/35℃ | |||||||||||||
| Heating Capacity Range (kW) | 2.5~6.0 | 3.3~8.3 | 4.5~11.4 | 5.9~14.8 | 7.2~18.2 | 8.8~22.0 | 9.6~24.0 | 4.5~11.4 | 5.9~14.8 | 7.2~18.2 | 8.8~22.0 | 9.6~24.0 | |
| Heating Power Input Range(kW) | 0.48~1.44 | 0.64~2.18 | 0.85~2.95 | 1.13~3.83 | 1.38~4.65 | 1.68~5.77 | 1.83~6.30 | 0.85~2.95 | 1.13~3.83 | 1.38~4.65 | 1.68~5.77 | 1.83~6.30 | |
| COP Range | 4.16~5.21 | 3.81~5.17 | 3.86~5.29 | 3.86~5.22 | 3.91~5.22 | 3.81~5.24 | 3.81~5.24 | 3.86~5.29 | 3.86~5.22 | 3.91~5.22 | 3.81~5.24 | 3.81~5.24 | |
| DHW Condition-Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):15/55℃ | |||||||||||||
| Heating Capacity Range (kW) | 2.6~5.3 | 3.7~7.4 | 5.2~10.2 | 6.6~13.2 | 7.2~16.2 | 7.8~17.6 | 8.8~19.6 | 5.2~10.2 | 6.6~13.2 | 7.2~16.2 | 7.8~17.6 | 8.8~19.6 | |
| Heating Power Input Range(kW) | 0.56~1.50 | 0.79~2.10 | 1.10~2.87 | 1.41~3.73 | 1.54~4.58 | 1.67~5.01 | 1.89~5.60 | 1.10~2.87 | 1.41~3.73 | 1.54~4.58 | 1.67~5.01 | 1.89~5.60 | |
| COP Range | 3.53~4.64 | 3.52~4.69 | 3.55~4.71 | 3.54~4.67 | 3.54~4.67 | 3.51~4.66 | 3.50~4.66 | 3.55~4.71 | 3.54~4.67 | 3.54~4.67 | 3.51~4.66 | 3.50~4.66 | |
| Heated water output (L/H) | 114 | 159 | 219 | 283 | 348 | 377 | 421 | 219 | 283 | 348 | 377 | 421 | |
| Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃ | |||||||||||||
| Cooling Capacity Range (kW) | 1.7~4.2 | 2.4~5.8 | 3.3~8.2 | 4.3~10.8 | 5.6~14.1 | 6.2~15.3 | 6.9~17.0 | 3.3~8.2 | 4.3~10.8 | 5.6~14.1 | 6.2~15.3 | 6.9~17.0 | |
| Cooling Power Input Range(kW) | 0.53~1.37 | 0.79~2.19 | 1.08~3.07 | 1.39~3.99 | 1.80~5.38 | 1.99~5.60 | 2.21~6.49 | 1.08~3.07 | 1.39~3.99 | 1.80~5.38 | 1.99~5.60 | 2.21~6.49 | |
| EER Range | 3.06~3.20 | 2.65~3.04 | 2.67~3.06 | 2.71~3.10 | 2.62~3.11 | 2.73~3.12 | 2.62~3.12 | 2.67~3.06 | 2.71~3.10 | 2.62~3.11 | 2.73~3.12 | 2.62~3.12 | |
| Space Heating (According to EN14825:2022) Average Climate Water Outlet 35°C | Rated heat output (kW) | 4.19 | 5.82 | 7.89 | 9.95 | 12.20 | 13.97 | 16.01 | 7.61 | 10.27 | 12.17 | 14.05 | 15.96 |
| Seasonal Space Heating Energy Efficiency (ηs) | 198.1% | 182.7% | 181.0% | 182.9% | 186.8% | 185.7% | 189.9% | 181.6% | 180.8% | 184.1% | 184.6% | 186.0% | |
| Seasonal Space Heating Energy Efficiency (SCOP) | 5.03 | 4.64 | 4.60 | 4.65 | 4.74 | 4.72 | 4.82 | 4.62 | 4.60 | 4.68 | 4.69 | 4.73 | |
| ErP Level | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| Sound pressure level (dB(A)) at 1 meter | 35 | 44 | 43 | 45 | 41 | 37 | 43 | 43 | 44 | 41 | 45 | 42 | |
| Sound power level (dB(A)) | 49 | 58 | 57 | 59 | 57 | 53 | 58 | 58 | 59 | 56 | 60 | 58 | |
| Space Heating (According to EN14825:2022) Average Climate Water Outlet 55°C | Rated heat output (kW) | 4.15 | 5.59 | 8.70 | 9.23 | 12.16 | 14.08 | 15.80 | 8.10 | 12.17 | 12.03 | 13.47 | 15.86 |
| Seasonal Space Heating Energy Efficiency (ηs) | 144.5% | 136.0% | 137.0% | 131.9% | 142.1% | 139.5% | 140.0% | 135.8% | 134.7% | 141.0% | 138.9% | 135.4% | |
| Seasonal Space Heating Energy Efficiency (SCOP) | 3.69 | 3.48 | 3.50 | 3.37 | 3.63 | 3.56 | 3.57 | 3.47 | 3.44 | 3.60 | 3.55 | 3.46 | |
| ErP Level | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | |
| Sound pressure level (dB(A)) at 1 meter | 35 | 44 | 47 | 46 | 43 | 40 | 43 | 42 | 45 | 43 | 46 | 43 | |
| Sound power level (dB(A)) | 49 | 58 | 61 | 60 | 59 | 56 | 58 | 57 | 59 | 58 | 62 | 58 | |
| Power supply | 230V/1Ph/50Hz/60Hz | 380V/3Ph/50-60Hz | |||||||||||
| Max. power input(kW) | 2.5 | 3.1 | 4.1 | 5.2 | 7.1 | 7.6 | 7.8 | 4.1 | 5.2 | 7.1 | 7.6 | 8.8 | |
| Max. current (A) | 11.5 | 14.2 | 18.8 | 23.8 | 32.5 | 34.8 | 35.7 | 7.8 | 9.8 | 13.5 | 14.3 | 14.8 | |
| Fuse or circuit breaker (A) | 16 | 20 | 25 | 32 | 40 | 40 | 40 | 16 | 16 | 20 | 20 | 20 | |
| Wire diameter mm² | 2.5mm² | 2.5mm² | 4mm² | 6mm² | 6mm² | 6mm² | 6mm² | 2.5mm² | 2.5mm² | 4mm² | 4mm² | 4mm² | |
| Diameter of pipe (mm) | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | DN25 | DN25 | DN25 | DN25 | DN32 | |
| Water Flow(m3/h) | 1.03 | 1.43 | 1.96 | 2.55 | 3.13 | 3.78 | 4.13 | 1.96 | 2.55 | 3.13 | 3.78 | 4.13 | |
| Water Pressure Drop (max) kPa | 25 | 30 | 35 | 40 | 43 | 45 | 50 | 35 | 40 | 43 | 45 | 50 | |
| Net Weight (kg) | 95 | 112 | 120 | 138 | 165 | 170 | 220 | 120 | 138 | 165 | 170 | 220 | |
| Body size(W*D*H) (mm) | 1080×440×761 | 1080×460×820 | 1080×460×960 | 1080×480×1060 | 1080×480×1372 | 1080×480×1372 | 1160×480×1580 | 1080×460×960 | 1080×480×1060 | 1080×480×1372 | 1080×480×1372 | 1160×480×1580 | |
| Packing size(W*D*H)(carton) | 1105×470×900 | 1100×490×960 | 1100×490×1110 | 1100×500×1210 | 1100×500×1510 | 1100×500×1510 | 1200×510×1720 | 1100×490×1110 | 1100×500×1210 | 1100×500×1510 | 1100×500×1510 | 1200×510×1720 | |
| Packing size(W*D*H)(Polywood) | 1135×500×910 | 1140×520×974 | 1140×520×1120 | 1140×530×1220 | 1140×530×1520 | 1140×530×1520 | 1230×540×1730 | 1140×520×1120 | 1140×530×1220 | 1140×530×1520 | 1140×530×1520 | 1230×540×1730 | |
| Loading quantity (carton) | 48/100 | 48/96 | 48/96 | 22/92 | 22/46 | 22/46 | 19/43 | 48/96 | 22/92 | 22/46 | 22/46 | 19/43 | |
| Loading quantity (Polywood) | 44/96 | 44/88 | 44/88 | 22/88 | 22/44 | 22/44 | 18/40 | 44/88 | 22/88 | 22/44 | 22/44 | 18/40 | |
| IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
| Anti-electric shock Rate | I | I | I | I | I | I | I | I | I | I | I | I | |
| Refrigerant | R290/0.5kg | R290/1.0kg | R290/0.95kg | R290/1.45kg | R290/1.3kg | R290/1.5kg | R290/1.6kg | R290/1.1kg | R290/1.45kg | R290/1.3kg | R290/1.4kg | R290/1.6kg | |
| Compressor | Brand | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY |
| Model | WHP05500PUKPA6NT6 | WHP07600PSDPC9KQ | WHP10200PSDPC9KQ | WHP13300PSDPC8FQ | WHP32900VSKTQ9JK | WHP32900VSKTQ9JK | WHP37600PSKTQ9JK | WHP10200PSDPC9KQ | WHP13300PSDPC8FQ | WHP32900VSKTQ9JK | WHP32900VSKTQ9JK | WHP37600PSKTQ9JK | |
| Water pump | Brand | SHINHOO | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE | SHIMGE |
| Model | GPA25-7.5H | APM25-9 | APM25-9 | APM25-9 | APF25-12 | APF25-12 | APF25-12 | APM25-9 | APM25-9 | APF25-12 | APF25-12 | APF25-12 | |
| Operation Ambient Temp. (℃) | -25~43℃ | ||||||||||||
| Operating water temperature (℃) | 28~65℃(DHW) | ||||||||||||
| Operating water temperature (℃) | 15~70℃(Heating) | ||||||||||||
| Operating water temperature (℃) | 7~35℃(Cooling) | ||||||||||||
