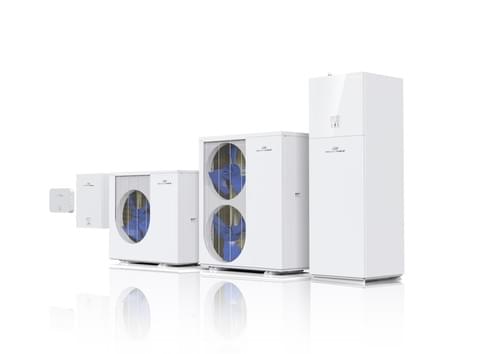

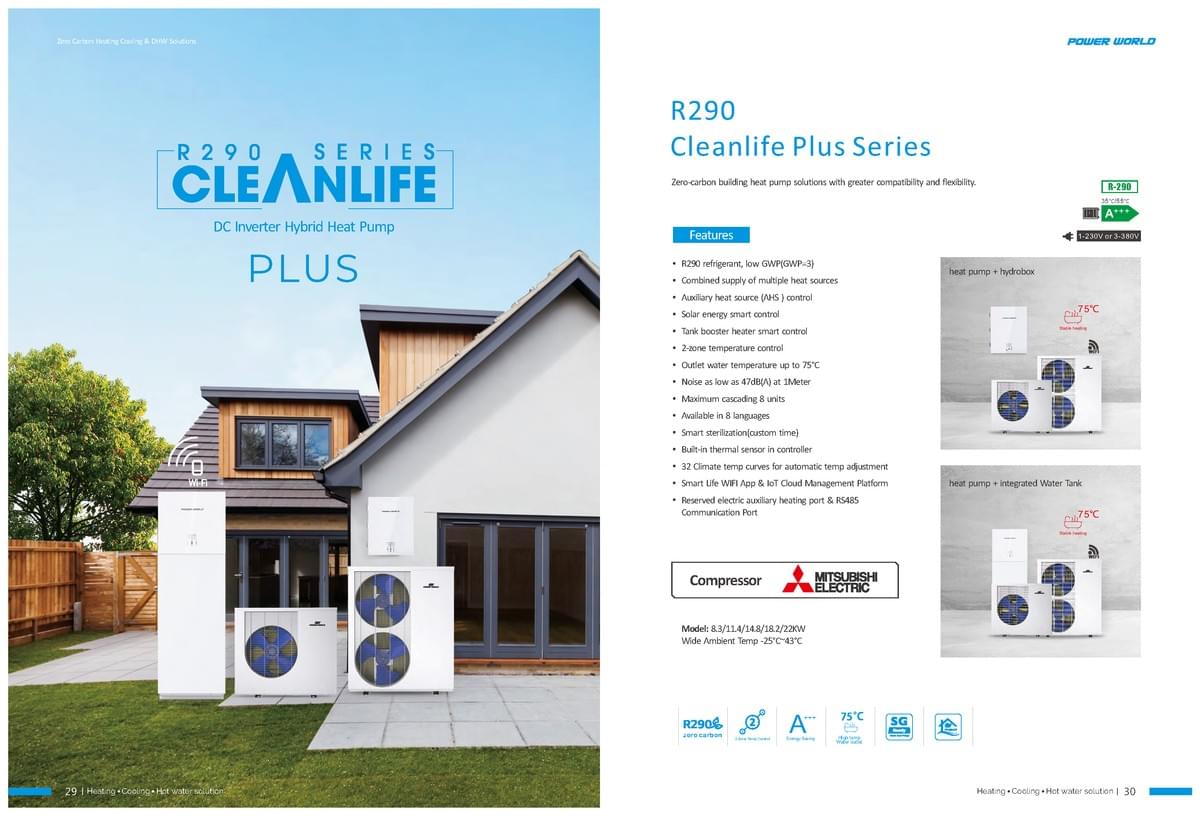

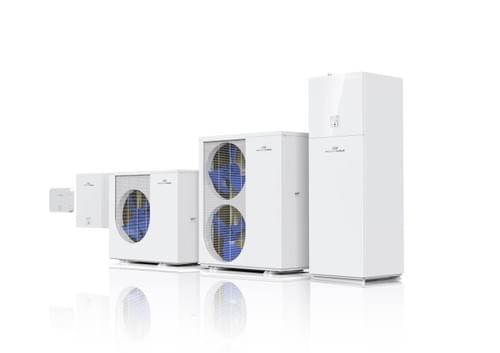

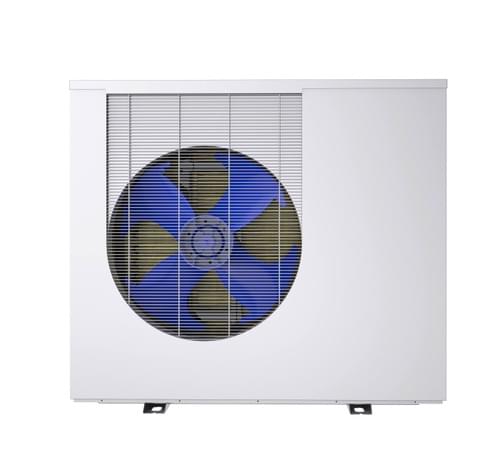

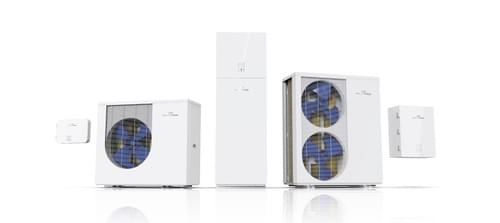

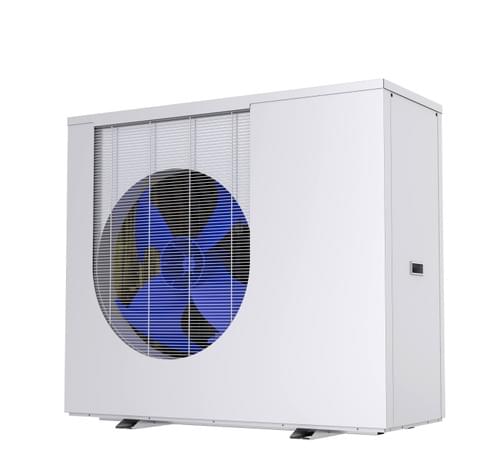

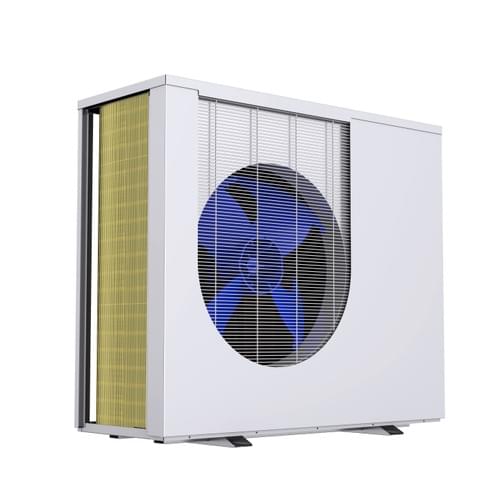

R290 Clean Life Plus Series : Household Heating&Cooling&DHW Heat Pump with solar power interface

Zero-carbon building heat pump solutions with greater compatibility and flexibility.

Features:

R290 refrigerant, low GWP(GWP=3)
Combined supply of multiple heat sources
Auxiliary heat source (AHS ) control
Solar energy smart control
Tank booster heater smart control
2-zone temperature control
Outlet water temperature up to 75°C
Noise as low as 47dB(A) at 1Meter
Maximum cascading 8 units
Available in 8 languages
Smart sterilization(custom time)
Built-in thermal sensor in controller
32 Climate temp curves for automatic temp adjustment
Smart Life WIFI App & IoT Cloud Management Platform
Reserved electric auxiliary heating port & RS485
Communication Port

Model: 8.3/11.4/14.8/18.2/22KW
Wide Ambient Temp -25°C~43°C
Compressor: MITSUBISHI ELECTRONIC

Get a Quote

More Details

R290 MITSUBISHI Compressor Series
BOM codeCP-RW0300133CP-RW0400110CP-RW0500150CP-RW0600084
ModelPW030-DKZLRS-E1/S(ODU)PW040-DKZLRS-E1/S(ODU)PW050-DKZLRS-E1(ODU)PW060-DKZLRS-E1(ODU)
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):30/35℃
Heating Capacity Range (kW)3.0~8.34.1~11.46.36～15.376.26～19.34
Heating Power  Input Range(kW)0.59~1.810.81~2.621.22～3.171.26～4.40
COP Range4.59~5.084.35~5.064.85～5.214.40～4.98
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):47/55℃
Heating Capacity Range (kW)2.7~7.23.6~9.65.62～14.155.46～15.19
Heating Power  Input Range(kW)0.83~2.391.14~3.401.80～4.581.81～5.08
COP Range3.01~3.252.82~3.163.09～3.122.99～3.02
DHW Condition-Ambient Temp.(DB/WB): 20/15℃，Water Temp.(In/Out):15/55℃
Heating Capacity Range (kW)4.0~8.85.3~11.87.2～15.77.6～18.6
Heating Power  Input Range(kW)0.80~1.931.08~2.711.51～3.671.58～4.31
COP Range4.56~4.994.35~4.914.28～4.774.32～4.81
Heated water output (L/H)189254338400
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃
Cooling Capacity Range (kW)2.0~5.83.3~8.54.81～12.34.12～12.86
Cooling Power  Input Range(kW)0.60~1.810.86~2.571.37～4.091.31～4.68
EER Range3.20~3.333.31~3.843.01～3.512.75～3.15
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):23/18℃
Cooling Capacity Range (kW)3.3~7.95.1~11.77.23~12.45.98~14.3
Cooling Power  Input Range(kW)0.59~1.860.85~2.631.32~2.881.24~4.13
EER Range4.25~5.594.45~6.004.30~5.463.46~4.82
ErP Level (Average climate, W35)A+++A+++A+++A+++
ErP Level (Average climate, W55)A+++A+++A+++A+++
Power supply230V/1Ph/50Hz/60Hz380V/3Ph/50-60Hz
Max. power input(kW)3.04.16.06.3
Max. current (A)13.718.811.912.5
Water Flow(m3/h)1.431.962.062.44
Water Pressure Drop (max) kPa25303233
IP Grade (Level of protection)IPX4IPX4IPX4IPX4
Anti-electric shock RateIIII
Diameter of pipe (mm)DN25DN25DN25DN25
RefrigerantR290/0.6kgR290/0.9kgR290/1.3kgR290/1.45kg
CompressorMITSUBISHI  ELECTRICMITSUBISHI  ELECTRICMITSUBISHI  ELECTRICMITSUBISHI  ELECTRIC
Net Weight (kg)122133159169
Body size(W*D*H) (mm)1202×528×10601202×528×10601147×539×13961147×539×1396
Packing  size(W*D*H)(carton)1220×535×11851220×535×11851170×560×15241170×560×1524
Packing  size(W*D*H)(Polywood)1250×565×12001250×565×12001170×575×15251170×575×1525
Operation Ambient Temp. (℃)-25~43℃
Operating water temperature (℃)25~75℃(DHW)
Operating water temperature (℃)25~75℃(Heating)
Operating water temperature (℃)5~30℃(Cooling)


Enabler and Developer
in clean and affordable energy

R290 Clean Life Plus Series : Household Heating&Cooling&DHW Heat Pump with solar power interface

Power up your sustainable life with solar

Embedding solar into everyday life whereever

Aesthetic value-creation for your garden with solar

A leading developer in Solar Energy Hub for your EVs and society

A professional developer in solar parks up to 530 MWp

Enabler in the innovation of solar with battery and fast charging technology

Solar air conditioner gives your life a higher quality and content

Solar roof tiles enable your house green, smart, aesthetic, and sustainable.

BIPV

BUILDING-INTEGRATED PHOTOVOLTAICS

New buildings and existing buildings with BIPV modules as roofs, facades, or skylights

R290 MITSUBISHI Compressor Series
BOM code	CP-RW0300133	CP-RW0400110	CP-RW0500150	CP-RW0600084
Model	PW030-DKZLRS-E1/S(ODU)	PW040-DKZLRS-E1/S(ODU)	PW050-DKZLRS-E1(ODU)	PW060-DKZLRS-E1(ODU)
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):30/35℃
Heating Capacity Range (kW)	3.0~8.3	4.1~11.4	6.36～15.37	6.26～19.34
Heating Power Input Range(kW)	0.59~1.81	0.81~2.62	1.22～3.17	1.26～4.40
COP Range	4.59~5.08	4.35~5.06	4.85～5.21	4.40～4.98
Heating Condition - Ambient Temp.(DB/WB): 7/6℃，Water Temp.(In/Out):47/55℃
Heating Capacity Range (kW)	2.7~7.2	3.6~9.6	5.62～14.15	5.46～15.19
Heating Power Input Range(kW)	0.83~2.39	1.14~3.40	1.80～4.58	1.81～5.08
COP Range	3.01~3.25	2.82~3.16	3.09～3.12	2.99～3.02
DHW Condition-Ambient Temp.(DB/WB): 20/15℃，Water Temp.(In/Out):15/55℃
Heating Capacity Range (kW)	4.0~8.8	5.3~11.8	7.2～15.7	7.6～18.6
Heating Power Input Range(kW)	0.80~1.93	1.08~2.71	1.51～3.67	1.58～4.31
COP Range	4.56~4.99	4.35~4.91	4.28～4.77	4.32～4.81
Heated water output (L/H)	189	254	338	400
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃
Cooling Capacity Range (kW)	2.0~5.8	3.3~8.5	4.81～12.3	4.12～12.86
Cooling Power Input Range(kW)	0.60~1.81	0.86~2.57	1.37～4.09	1.31～4.68
EER Range	3.20~3.33	3.31~3.84	3.01～3.51	2.75～3.15
Cooling Condition - Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):23/18℃
Cooling Capacity Range (kW)	3.3~7.9	5.1~11.7	7.23~12.4	5.98~14.3
Cooling Power Input Range(kW)	0.59~1.86	0.85~2.63	1.32~2.88	1.24~4.13
EER Range	4.25~5.59	4.45~6.00	4.30~5.46	3.46~4.82
ErP Level (Average climate, W35)	A+++	A+++	A+++	A+++
ErP Level (Average climate, W55)	A+++	A+++	A+++	A+++
Power supply	230V/1Ph/50Hz/60Hz		380V/3Ph/50-60Hz
Max. power input(kW)	3.0	4.1	6.0	6.3
Max. current (A)	13.7	18.8	11.9	12.5
Water Flow(m3/h)	1.43	1.96	2.06	2.44
Water Pressure Drop (max) kPa	25	30	32	33
IP Grade (Level of protection)	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate	I	I	I	I
Diameter of pipe (mm)	DN25	DN25	DN25	DN25
Refrigerant	R290/0.6kg	R290/0.9kg	R290/1.3kg	R290/1.45kg
Compressor	MITSUBISHI ELECTRIC	MITSUBISHI ELECTRIC	MITSUBISHI ELECTRIC	MITSUBISHI ELECTRIC
Net Weight (kg)	122	133	159	169
Body size(WDH) (mm)	1202×528×1060	1202×528×1060	1147×539×1396	1147×539×1396
Packing size(WDH)(carton)	1220×535×1185	1220×535×1185	1170×560×1524	1170×560×1524
Packing size(WDH)(Polywood)	1250×565×1200	1250×565×1200	1170×575×1525	1170×575×1525
Operation Ambient Temp. (℃)	-25~43℃
Operating water temperature (℃)	25~75℃(DHW)
Operating water temperature (℃)	25~75℃(Heating)
Operating water temperature (℃)	5~30℃(Cooling)
