Features

• Fuse Can Replace

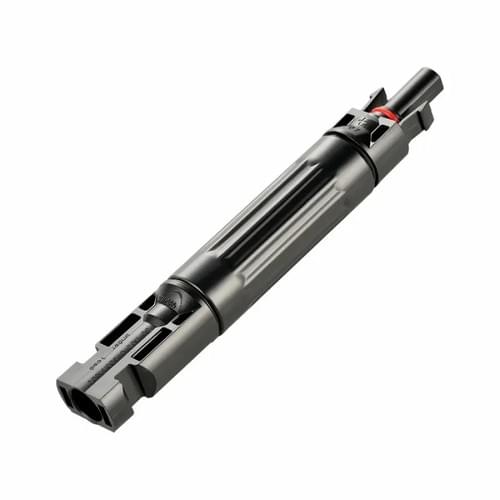

• 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.

• Compatible with PV cables with different insulation diameters.

• Designed for a wide range of DC applications.

• Simple plug-and-play.

• Auto-lock equipment of male and female points renders connections easy and reliable.

• Waterproof fuse holder - IP67 Class Protection.

• Insulation material PPO.

• High current-carrying capacity.

• Prevent large currents from damaging the solar panels.

• Designed to provide complete single-circuit protection to your solar power array.

• Protection Class II

• The connector adopts touch and insertion of reed with inner-knob type.

• Purchase this product for extra protection on your system.

• Rated Current: 10A/15A/20A/30A

• Degree of Protection: IP2*/IP67

• Rated Voltage: 1000 V DC

• Flame Class: UL94-V0

• Test Voltage: 6000V (50Hz,1 min)

• Safety Class: II

• Overvoltage Category: CATIII

• Suitable Connector: Solar Connector

• Contact Resistance of Plug Connector: 1mΩ

• Insertion Force / Withdrawal Force: ≤50N / ≥50N

• Contact Material: Copper, Silver Plated

• Insulation Material: PPO

• Temperature Range: -40 to +125°C
